Glasses Parts Guide: Names, Diagrams & Replacement for Safety Brands

Safety glasses are important in protecting your eyes during a dangerous circumstance. Where do you work? Construction/ manufacturing/ labs? All these require one to understand the components of his or her safety eyewear. It assists you in maintaining your glasses in good condition and fixing the parts that have broken. You are more comfortable and protected if you understand the anatomy of your glasses parts.

This guidance has four main sections.

• First, you'll discover the main parts and their purposes.
• Second, you'll see diagrams with all the parts identified.
• Third, you'll discover what breaks most often.
• Fourth, you'll see a step-by-step replacement guide.
• Finally, you'll see parts from top safety brands. You'll discover what parts each of these brands offers.

Besides, you'll find out which brands offer similar glasses parts. The tutorial ends with care reminders. You'll be equipped with knowledge on how to keep your safety glasses in top condition. This is time-saving, money-saving, and eye-saving.

Anatomy of Safety Glasses: Key Components and What They Do

Safety glasses have several significant components. All parts of eye glasses help in protection and comfort.

Frame

The frame is the backbone. It holds everything together.

• Bridge – the section that sits on your nose.
• Rim – ring encircling the lens. It holds the lens in position.
• Temples (arms) – side pieces that rest on your ears and put glasses on your face.
• Hinges: The temples can fold in thanks to hinges. Glasses cannot fold flat without hinges.
• Brow guard – extra protection on your brow on some models.

Lenses

These are the fundamental protection pieces. Lenses may be coated with anti-fog, scratch, and UV. They may be single vision, bifocal, or prescriptive. There are lenses for RX insert frames. Optical clarity is the key to safe work.

Side Shields

These clip onto the frame sides. They keep dangers away from the sides. OSHA and ANSI require them in most environments. You can get integrated or clip-on side shields. SEG has shields for most brands.

Strap/Band (for wraparound or goggle-style)

They go over your head. They hold spectacles or goggles securely. Suitable for dust, chemicals, and impact jobs. Straps are elastic or Velcro, adjustable for a close fit. They hold spectacles steady.

What are the Folding Parts of Glasses Called?

Foldable components include ties at hinges. These are temple arms. These fold in at hinges to be stored folded. The hinges are spring or screw hinges. These components wear out with the passage of time.

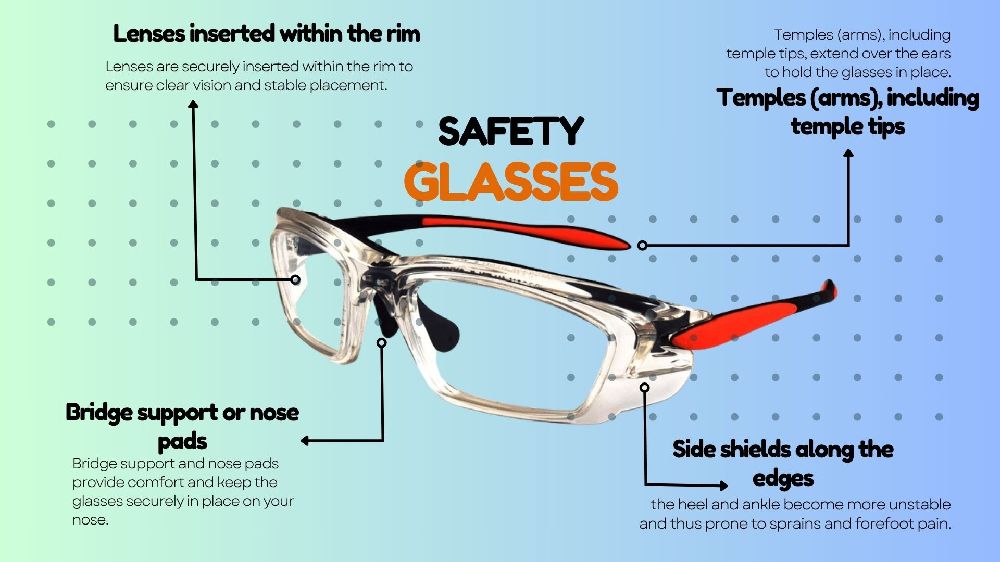

This diagram will help one easily point out all the components being discussed. A typical glasses parts diagram identifies:

• Frame front or eyewire
• Lenses inserted within the rim
• Bridge support or nose pads
• Temples (arms), including temple tips
• Hinged to temples at the front
• Side shields along the edges
• Adjustable band or strap (for wrap and goggle models)

Look for pieces clearly labelled so you have an idea of where each component belongs.

Common Wear & Tear: What Goes Wrong and Why

Parts deteriorate with time. Here is how it goes:

• Lenses: They become scratched and foggy. Chemicals or cleaning cause coatings to degrade. Faulty lenses decrease clarity and protection.
• Temples/Hinges: Screws loosen. Arms bend. Hinges break from repeated folding and unfolding. Bent temples reduce fit and comfort.
• Nose Pads: They get worn out because of sweat and oils. They lose their fit and lose pads, causing discomfort and slipping.
• Side Shields: Crack or loosen on impact. Clip-on varieties may be knocked off.
• Straps/Bands: Elastic stretches. Velcro wears out. Worn straps fail to keep the eyewear tight.

Small imperfections can turn into serious risks. A broken buckle or cracked strap is dangerous. Inspect all parts regularly and replace damaged parts at once.

Safety Glasses Replacement Parts: Step-by-Step How to Replace Every Part

Safety equipment is only effective when complete. Replacing faulty parts prolongs the lifespan. Start by examining the glasses. Look for faulty or broken parts. Purchase genuine replacements on SEG (www.safetyeyeglasses.com). Do not use generic or incompatible parts. Genuine parts fit correctly. They do not lower safety ratings. The following are replacement step-by-step instructions.

Changing Lenses

• Remove the old lens. No tool on most models, just pop it out.
• Clean the frame using mild soap.
• Install a new lens. Seat into the rim grooves.
• Press gently until secure.
• Check coatings. Replace if scratched or opaque.

Replacing Nose Pads

• Snap-on pads: Replace exhausted pads. Install fresh ones in holders.
• Screw-in pads: Small screwdriver. Remove the old pad. Screw in a new pad.
• Always match material; silicone pads are easiest to locate on SEG.

Replacing Side Shields

• Clip-ons: Gently pull from the frame. Place tabs on the new shield. Press into grooves.
• Integrated shields: These can also involve lens removal. Replace the entire shield piece.
• Verify ANSI Z87.1 compliance before completion.
• Replacing/Repairing Temples and Hinges
• Tighten loose screws with a small tool.
• For defective hinges, SEG offers replacement hinge kits.
• Take away the temple arm. Install a new one. Screw in.

SEG has numerous spring hinge models. Match the model and brand.

Replacing or Modifying Straps

• Replace the old strap or band.
• Support built-in slots or universal strap-on frame loops. They are mostly elastic.
• Adjust length. Fasten with Velcro or a clip.
• Pre-work test fit. The strap must be snug but comfortable.

Top Safety Eyewear Brands & Replacement Parts

Brand monitoring guarantees fit, function, and compliance. Often, parts are not universal. SEG carries Safety glasses replacement parts for well-known brands. Pentax, OnGuard, Guardian, ArmourX, and Wiley X are among the leading brands. They all have different frames and parts. SEG protects all of them with nose pads, side shields, straps, and others in inventory. Genuine replacements have ANSI ratings and fit. Learn more below.

Pentax Safety Glasses Replacement Parts

Models: Pentax F9800 and Pentax GT20 Safety Goggle

Pentax GT20 Safety Goggle

These parts perfect the fit and function of Pentax eyewear. Brow guard improves overhead protection. Insert provides prescription wearability.

OnGuard Safety Glasses Replacement Parts

Models: OnGuard 220FS and OnGuard 220S

OnGuard 220S Safety Glasses

In dusty conditions, dust dam seals and shields improve safety. Both parts are easy to install and available on SEG.

Guardian Safety Glasses Replacement Parts

Models: GRXS02 and GRXS12

Guardian GRXS12 Safety Glasses

These parts boost comfort and protection for Guardian frames. OEM quality available at SEG.

ArmourX Safety Glasses Replacement Parts

Models: ArmourX 6009 and ArmourX 6002

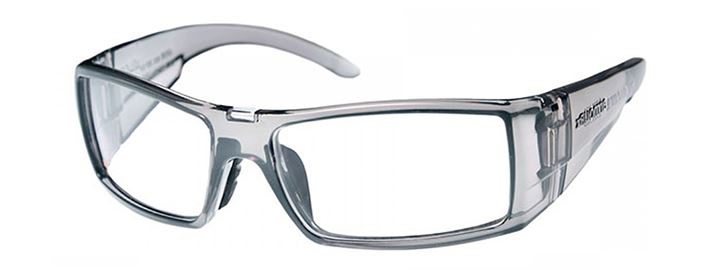

ArmourX 6009

Cushion and dust bar keep the wearer comfortable and clean. Available via SEG.

Wiley X Safety Glasses Replacement Parts

Models: Wiley X AIRRAGE and Wiley X BRICK

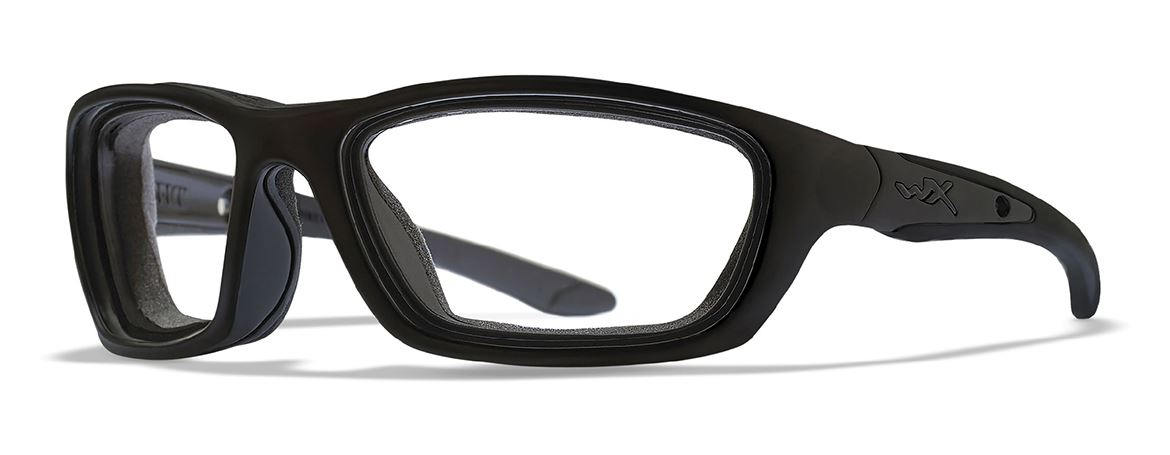

Wiley X BRICK

Inserts and pads are OEM quality. SEG stocks both with fast shipping.

SEG has each component listed, along with its models. You can search by brand, model, or type of part. Price, stock, and shipping are shown. SEG has charts of compatibility. You can also get assistance if you have no clue which part will fit your frame.

Wearing the correct part ensures compliance. OSHA requires ANSI Z87.1 equipment. Replacing parts with non-approved parts can void certification. That can lead to fines or injuries. SEG's parts are original equipment or exact duplicates. They meet all standards.

SEG also offers kits. For example, the Pentax F9800 Maintenance Kit has side shields, nose pads, and temple screws. The ArmourX RX Conversion Pack has an insert, dust bar, and strap. You pay less, and you are guaranteed to be compatible.

Most prefer SEG because of its reliable service. They ship promptly and have a support team that can aid in sizing, fit, and the replacement process. If a frame is out of stock, SEG will possibly still stock hard-to-find parts.

For prescriptive wearers, an RX insert is necessary. An insert positions your prescriptive lens in the back of the safety lens. It has the ANSI rating. You fill out the prescription; SEG ships out the insert.

Maintain replacement parts in inventory. Plastics deteriorate, and labels fade. Having a dust bar or a template avoids downtime. SEG's maintenance kits are essential for high-use job sites.

Maintenance Tips to Increase Lifespan

Keep your safety glasses in good shape while following the steps:

• Mild soap and water washing every day.
• Store in a pouch or hard case.
• Avoid excessive heat that can warp frames.
• Inspect parts every month. Look for scratches, loose screws, and frayed straps.
• Avoid using strong chemicals that can remove coatings.
• Buy a proper fit and ANSI compliance from SEG.
• Twist pieces like seals and pads. It prolongs life.
• Have spare parts on hand: nose pads, temple screws, side shields.

When to Replace Entire Glasses

Replace glasses if:

• The frame cracks or bends irreversibly.
• More than one part fails simultaneously.
• ANSI rating is affected.
• You can't find matching parts.
• A technician suggests replacing.

In such a scenario, purchase a new set from SEG with parts backup.

The Significance of Knowing Your Safety Eyewear Parts

Understanding your eyewear components is more than information. It's a matter of safety, regulation, and saving money. Small things, such as nose pads or shields, make a big difference. They impact comfort and protection. With SEG's extensive inventory of genuine components, you can keep your glasses functioning at their best. Visit SafetyEyeGlasses to explore options from Pentax, OnGuard, Guardian, ArmourX, Wiley X, and more. Genuine components ensure ANSI Z87.1 compliance. Keep spare parts in inventory. Repair what wears out. Replace what breaks. It's cost-effective. Most importantly, it safeguards your eyes.
